DAC-HP16BMC 16-Bit Digital-to-Analog Converters

INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") ➀ Input Logic Level, Bit OFF ("1") ➀ Logic Loading 16 bits Complementary binary Complementary offset binary 0V to +0.8V at *1mA +2.4V to +5.5V at +40 A 1 TTL load PERFORMANCE ➁ Nonlinearity Er.

DAC-HP16BMC Features

* 16-Bit resolution

* 3 Output voltage ranges

* ±15ppm/°C maximum gain tempco

* Integral nonlinearity error ±0.003%FSR, max.

* 14 Bits monotonic from +10°C to +40°C

* Models available in commercial (0 to + 70°C), indus- trial (

* 40 to +100°C), o

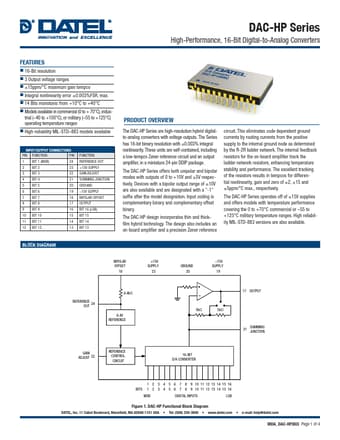

DAC-HP16BGC-DATEL.pdf

DAC-HP16BMC Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC-HP16BMC, DAC-HP16BGC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC-HP16BMC, DAC-HP16BGC

Manufacturer:

DATEL

File Size:

118.02 KB

Description:

16-bit digital-to-analog converters.

Note:

This datasheet PDF includes multiple part numbers: DAC-HP16BMC, DAC-HP16BGC.
Please refer to the document for exact specifications by model.
