DAC-HP16BME, DAC-HP16BGC - 16-Bit Digital-to-Analog Converters

The DAC-HP16BME by DATEL is a 16-Bit Digital-to-Analog Converters. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the DAC-HP16BME 16-Bit Digital-to-Analog Converters datasheet (DATEL).

Datasheet Details

Part number DAC-HP16BME, DAC-HP16BGC
Manufacturer DATEL
File Size 118.02 KB
Description 16-Bit Digital-to-Analog Converters
Datasheet download datasheet DAC-HP16BGC-DATEL.pdf
Note This datasheet PDF includes multiple part numbers: DAC-HP16BME, DAC-HP16BGC.
Please refer to the document for exact specifications by model.

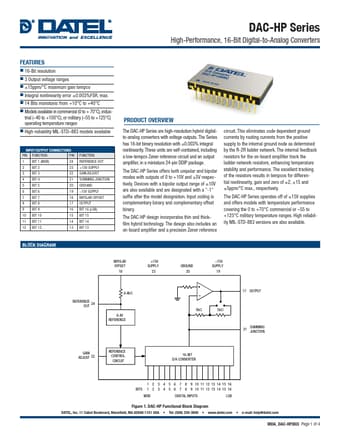

Additional preview pages of the DAC-HP16BME datasheet.

DAC-HP16BME Product details

Description

INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") ➀ Input Logic Level, Bit OFF ("1") ➀ Logic Loading 16 bits Complementary binary Complementary offset binary 0V to +0.8V at 1mA +2.4V to +5.5V at +40 A 1 TTL load PERFORMANCE ➁ Nonlinearity Error, max.Monotonicity, +10°C to +40°C Gain Error, Before Trimming Zero Error, Before Trimming Gain Tempco, max.➂ Gain Tempco, max.BGC Zero Tempco, Unipolar, max.Offset Tempco, Bipolar, max.Differ
