DWM2F60N120 Datasheet, Module, DAWIN

DWM2F60N120 Features

  • Module ☞ Repetitive Reverse Voltage : VRRM = 1200V ☞ Low Forward Voltage Drop : VF(typ.) = 1.7V ☞ Average Forward Current : IF(AV.) = 60A @ Tc = 100℃ ☞ Ultra-Fast Reverse Recovery Time : trr(t

PDF File Details

Part number:

DWM2F60N120

Manufacturer:

DAWIN

File Size:

271.92kb

Download:

📄 Datasheet

Description:

Ultra-fast soft recovery diode module. Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems. These di

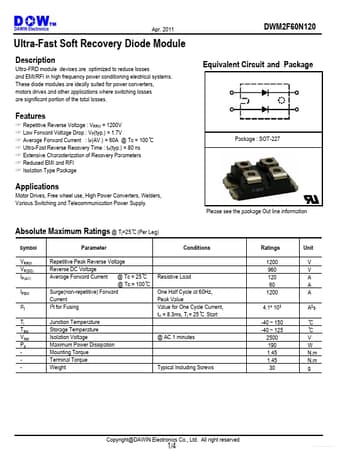

Datasheet Preview: DWM2F60N120 📥 Download PDF (271.92kb)
Page 2 of DWM2F60N120 Page 3 of DWM2F60N120

DWM2F60N120 Application

  • Applications where switching losses are significant portion of the total losses. Equivalent Circuit and Package Features ☞ Repetitive Reverse Volt
