DWM3000 - IEEE 802.15.4-z UWB Transceiver Module

5 pcs bag 25 pcs bag 100 pcs on a 7’’ reel 500 pcs on a 13’’ reel Evaluation board DWM3000 Data Sheet Rev B, May 2021 Subject to change without notice | All rights reserved 1 of 27 www.qorvo.com ® Table of Contents DWM3000 IEEE 802.15.4-z UWB Transceiver Module 1 Overview 3 1.1 DWM3000 Functio

® Product Overview DWM3000 IEEE 802.15.4-z UWB Transceiver Module The Qorvo® DWM3000 is a fully integrated Ultra-Wideband (UWB) transceiver module based on the Qorvo® DW3110 IC.

It integrates antenna, all RF circuitry, power management and clock circuitry in one module simplifying integration.

It can be used in 2-way ranging or TDoA location systems to locate assets to a precision of 10 cm and supports data rates of up to 6.8 Mbps.

The DWM3000 is designed to be compliant to the FiRa™ PHY and M

DWM3000 Features

* Functional Block Diagram Ceramic UWB antenna EXTON 1 WAKEUP 2 RSTn 3 GPIO7 4 VDD1 5 VDD3V3 6 VDD3V3 7 VSS 8 R VDD1 VDD2 DW3110 DC-DC VDD3 EXTON 24 VSS 23 VSS 22 IRQ 21 VSS 20 SPICLK xtal 19 SPIMISO 18 SPIMOSI 17 SPICSn 9 10 11 12 13 14 15 16

* IEEE 802.15.4-2015 and IEEE 802.1

DWM3000-Qorvo.pdf

Preview of DWM3000 PDF

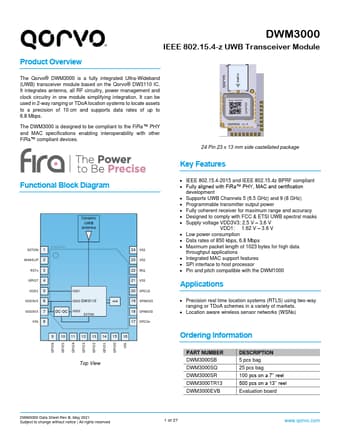

DWM3000 Datasheet Preview Page 2 DWM3000 Datasheet Preview Page 3
