SBU61

63W Open Frame Switching Power Supplies

SBU61 Features

* Wide Input Voltage 90 to 264 VAC,47 to 63 Hz Internal EMI filter Single to Quad Output Input connector mates with Molex housing 09-50-3031 and Molex 2878 series crimp terminal www.DataSheet4U.com Output connector mates with Molex housing 09-50-3061 (or 09-50-3081) and Molex 2878 series crimp termin

SBU61 General Description

The SBU61 series of compact, open frame constructed, AC/DC switching mode power supplies provide 63 Watts of continuous output power . They are ideally suited for use in CRT terminals, disc drive systems, microprocess or based systems, portable equipments and many other applications, all models are.

SBU61 Datasheet (235.54 KB)

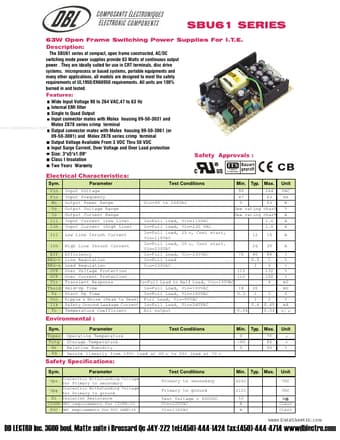

Preview of SBU61 PDF

Datasheet Details

Part number:

SBU61

Manufacturer:

DB Lectro

File Size:

235.54 KB

Description:

63w open frame switching power supplies.
