6A05 - SILICON RECTIFIER

6A05 Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05/P600A THRU 6A10/P600M TECHNICAL SPECIFICATIONS OF SILICON RECTIFIER VOLTAGE RANGE - 50 to 100.

6A05 Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color ban

📥 Download Datasheet

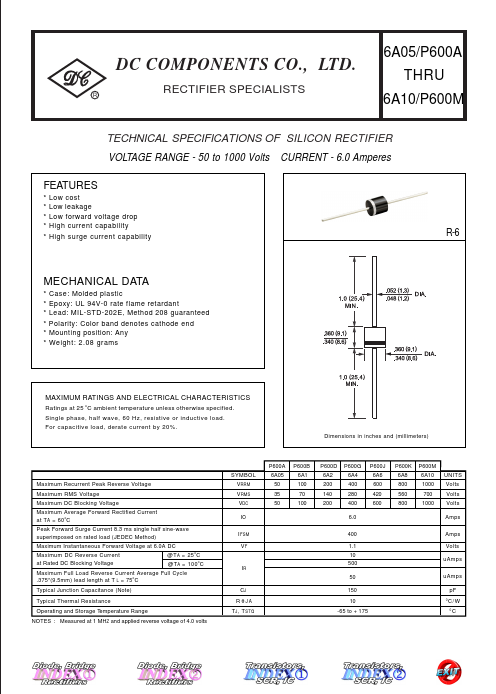

Preview of 6A05 PDF

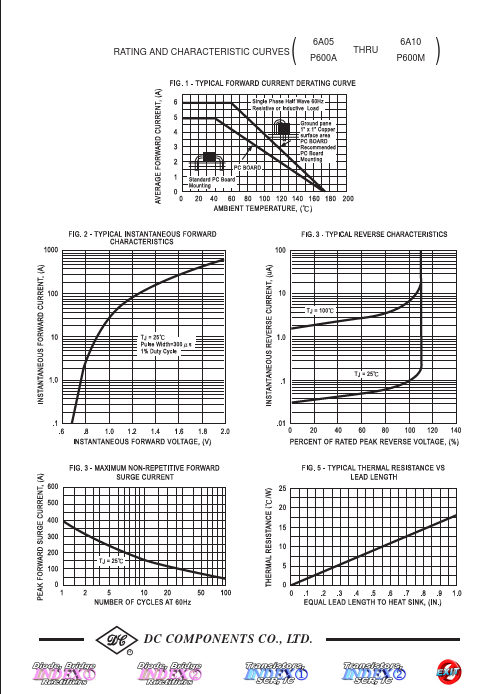

datasheet Preview Page 2

Datasheet Details

Part number
6A05
Manufacturer
DC COMPONENTS
File Size
449.42 KB
Datasheet
6A05-DCCOMPONENTS.pdf
Description
SILICON RECTIFIER
