6A2G GLASS PASSIVATED RECTIFIER

DC COMPONENTS

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05G THRU 6A10G TECHNICAL SPECIFICATIONS OF GLASS PASSIVATED RECTIFIER VOLTAGE RANGE - 50 to 100.

📥 Download Datasheet

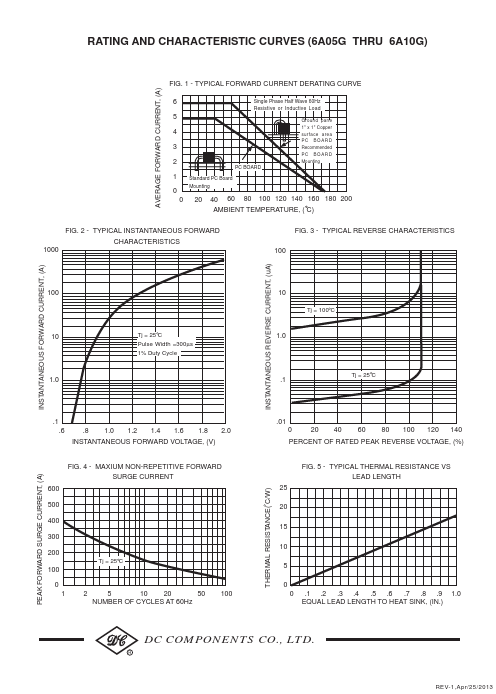

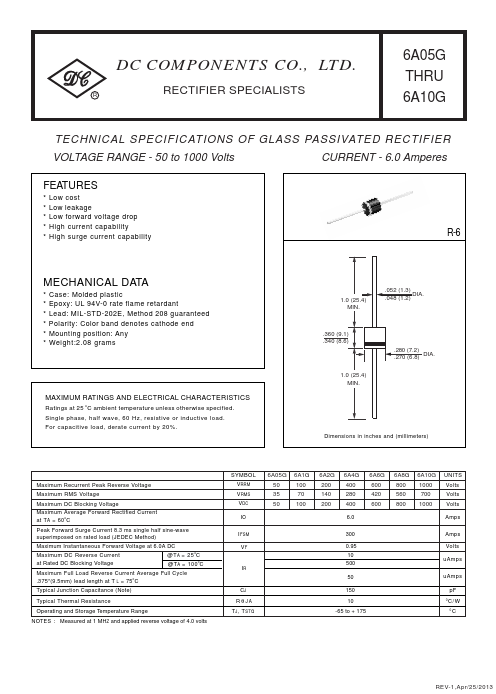

6A2G Datasheet Preview — Preview of 6A2G PDF

Datasheet Specifications

Part number: 6A2G
Manufacturer: DC COMPONENTS
File Size: 43.38 KB
Datasheet: 6A2G-DCCOMPONENTS.pdf
Description: GLASS PASSIVATED RECTIFIER

Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band
