S2GBF

GENERAL PURPOSE SILICON RECTIFIER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Micro Commercial Components MURS2GBFL-TP DIODE STANDARD 400V 2A SMBF DigiKey 0 5000 units
$0.12

S2GBF Datasheet (33.35 KB)

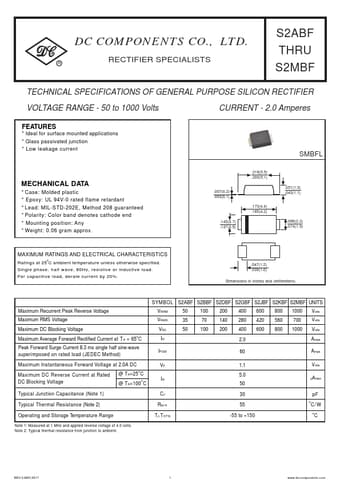

Preview of S2GBF PDF Datasheet

Datasheet Details

Part number:

S2GBF

Manufacturer:

DC COMPONENTS

File Size:

33.35 KB

Description:

General purpose silicon rectifier

S2GBF Features

* Ideal for surface mounted applications

* Glass passivated junction

* Low leakage current SMBFL MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rated flame retardant

* Lead: MIL-STD-202E, Method 208 guaranteed

* Polarity: Color band denotes cathode end

* M
