S2GF GENERAL PURPOSE SILICON RECTIFIER

DC COMPONENTS

S2GF Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS S2AF THRU S2MF TECHNICAL SPECIFICATIONS OF GENERAL PURPOSE SILICON RECTIFIER VOLTAGE RANGE - 50 to .

S2GF Applications

* Glass passivated junction
* Low leakage current SMAFL MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.03 gram

📥 Download Datasheet

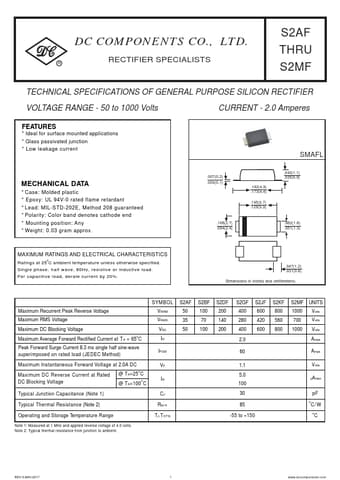

S2GF Datasheet Preview — Preview of S2GF PDF

Datasheet Details

Part number: S2GF
Manufacturer: DC COMPONENTS
File Size: 29.16 KB
Datasheet: S2GF-DCCOMPONENTS.pdf
Description: GENERAL PURPOSE SILICON RECTIFIER
