DP2535 High Precision CC/CV Primary-Side PWM Power Switch

DP2535 Description

DP2535 High Precision CC/CV Primary-Side PWM Power Switch GENERAL .
DP2535 is a high performance offline PWM power switch for low power AC/DC charger and adapter applications.

DP2535 Features

* including Cycle-by-Cycle current limiting, VDD Over Voltage Protection (VDD OVP), short circuit protection, built-in leading edge blanking, VDD under voltage lockout (UVLO), OTP, etc. High precision constant voltage (CV) and constant current (CC) can be achieved by DP2535. DP2535 is offered in SOP8

DP2535 Applications

* It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. High Precision Constant Voltage (CV) and Constant Current (CC) control are integrated as shown in the figure below. In CC control, the current and output power setting can be adjusted exter

📥 Download Datasheet

Preview of DP2535 PDF

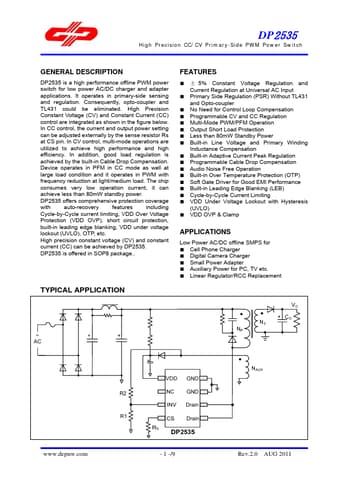

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DP2535
Manufacturer
DEPP Microelectronics
File Size
1.05 MB
Datasheet
DP2535-DEPPMicroelectronics.pdf
Description
High Precision CC/CV Primary-Side PWM Power Switch
