DP2532

High Precision CC/CV Primary-Side PWM Controller

DP2532 Features

* including Cycle-by-Cycle current limiting, VDD Over Voltage Protection (VDD OVP), short circuit protection, built-in leading edge blanking, VDD under voltage lockout (UVLO), OTP, etc. High precision constant voltage (CV) and constant current (CC) can be achieved by DP2532. DP2532 is offered in SOT23

DP2532 General Description

DP2532 is a high performance offline PWM controller for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. High Precision Constant Voltage (CV) and Constant Current (CC) control are integrate.

DP2532 Datasheet (414.53 KB)

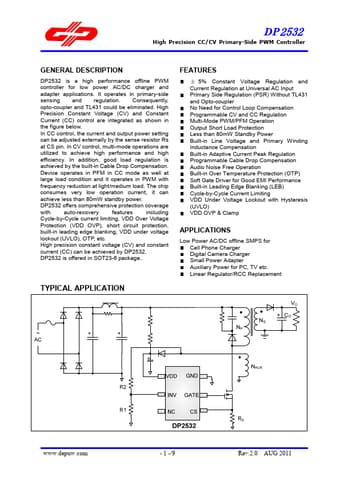

Preview of DP2532 PDF

Datasheet Details

Part number:

DP2532

Manufacturer:

DEPP Microelectronics

File Size:

414.53 KB

Description:

High precision cc/cv primary-side pwm controller.
