DRC23 Datasheet - DETUSCH

DRC23 - Right Angle Miniature

DRC23 Series Right Angle Miniature New to the Deutsch I.P.D.

line of P.C.B.

Headers is the DRC23 Series.

Specifically designed with size 20 contacts, this miniature version of the DRC13 Series will accept wire sizes of AWG 16 thru 20 (0.60 - 1.0 mm2).

A contact current rating of 7.5 amps is specified with an operating temperature range of -55 C to +125 C.

Deutsch engineers designed the header housing to be scoop-proof, thus preventing any damage of bent or broken contacts at the mating interfac

DRC23-DETUSCH.pdf

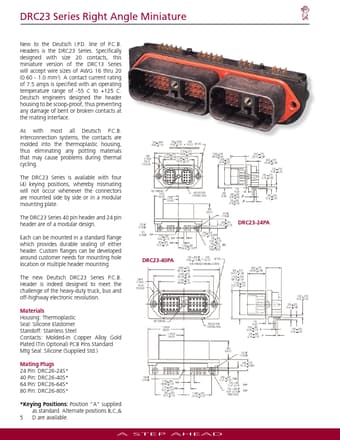

Preview of DRC23 PDF
DRC23 Datasheet Preview Page 2

Datasheet Details

Part number:

DRC23

Manufacturer:

DETUSCH

File Size:

699.08 KB

Description:

Right angle miniature.
