DP1801B - Quasi-Resonant PSR CC/CV PWM Power Switch

DP1801B Description

DP1801B Quasi-Resonant PSR CC/CV PWM Power Switch .
DP1801B is a high performance Quasi Resonant (QR) Primary Side Regulation (PSR) PWM power switch with high precision CV/CC control ideal for charger a.

DP1801B Features

* Low Cost Solution Built-in 800V power BJT
* Quasi-Resonant Primary Side Regulation (QR-PSR) Control with High Efficiency
* Multi-Mode PSR Control
* Fast Dynamic Response
* Built-in Dynamic Base Drive
* Audio Noise Free Operation
* ±4% CC and CV Regulation
* Low Stan

DP1801B Applications

* Battery Chargers for Cellular Phones

📥 Download Datasheet

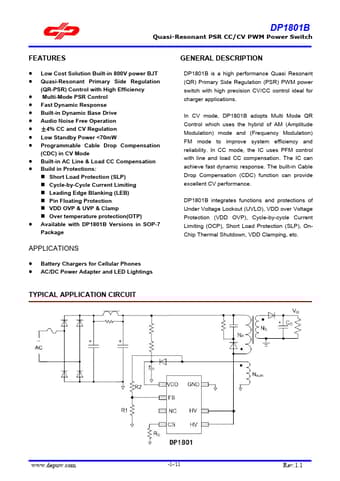

DP1801B Datasheet Preview — Preview of DP1801B PDF

Datasheet Details

Part number: DP1801B
Manufacturer: DEVELOPER MICROELECTRONICS
File Size: 1.63 MB
Datasheet: DP1801B-DEVELOPERMICROELECTRONICS.pdf
Description: Quasi-Resonant PSR CC/CV PWM Power Switch
