DG2N70 - N-CHANNEL ENHANCEMENT MODE MOSFET

📥 Download Datasheet

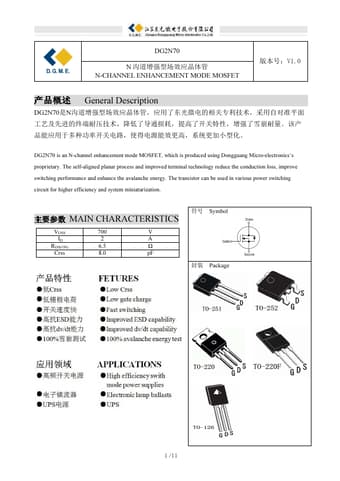

Preview of DG2N70 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DG2N70
Manufacturer DGME
File Size 1.44 MB
Description N-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet download datasheet DG2N70-DGME.pdf

DG2N70 Product details

Description

DG2N70N，， ，，，。 ，，。 DG2N70 is an N-channel enhancement mode MOSFET, which is produced using Dongguang Micro-electronics’s proprietary.The self-aligned planar process and improved terminal technology reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for higher efficiency and system miniaturization.MAIN CHARACTERISTICS VDSS ID RDS(ON) Crss 700 2 6.5 8.0 V A Ω pF Symbol Package 1 /11
