2A05, 2A01 - 2.0A RECTIFIER

DIODES

📥 Download Datasheet

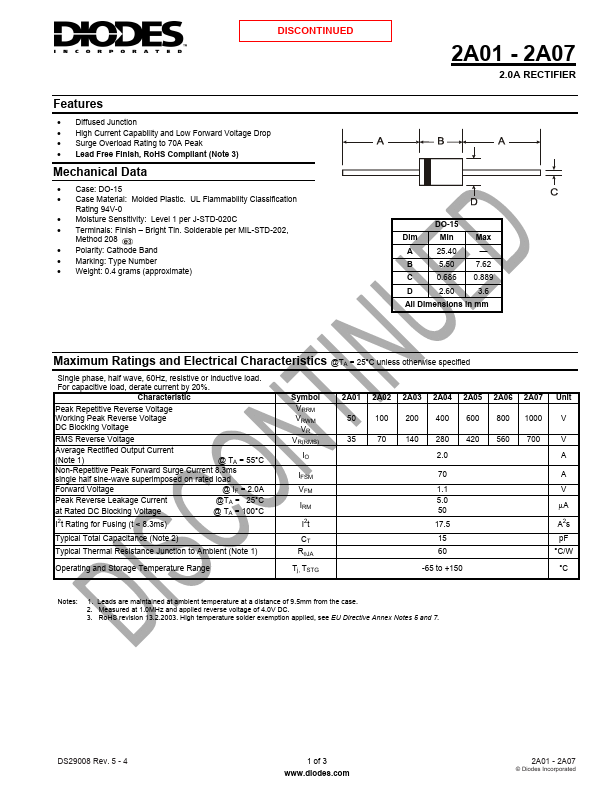

2A05 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2A05, 2A01. Please refer to the document for exact specifications by model.

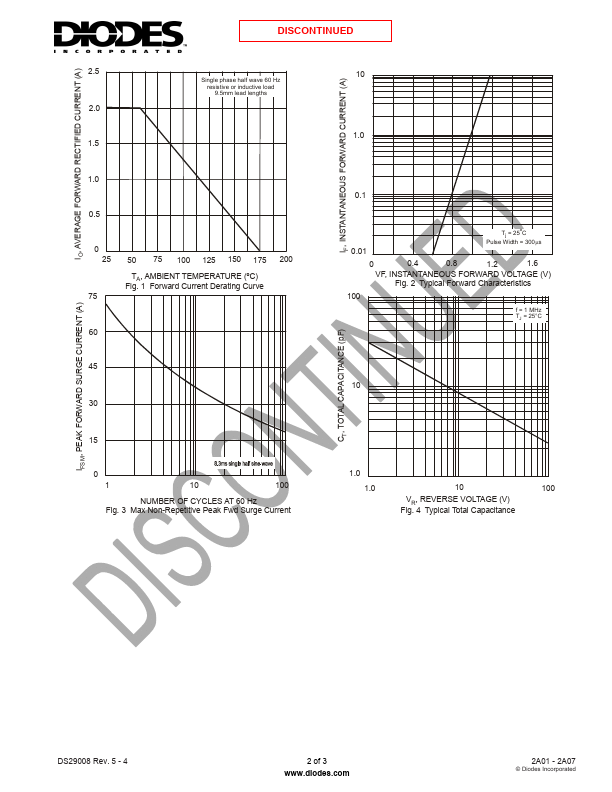

datasheet Preview Page 2

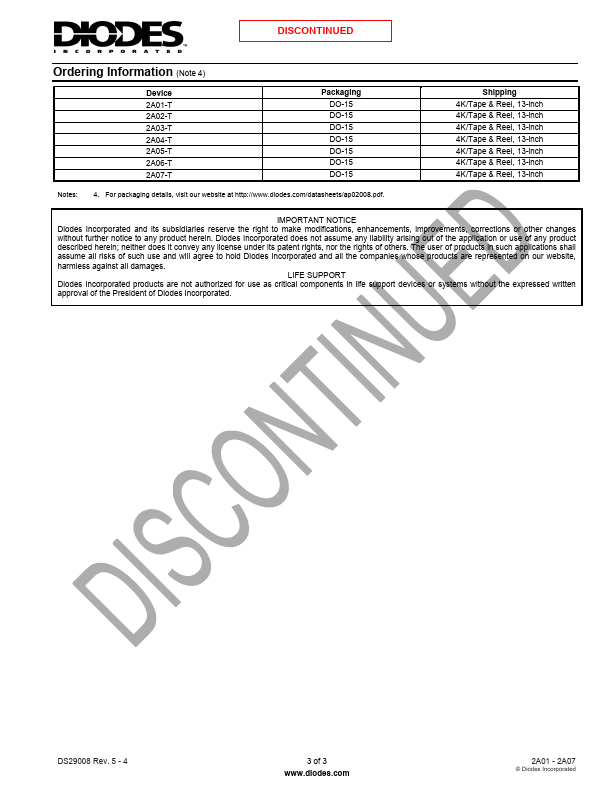

datasheet Preview Page 3

Datasheet Details

Part number	2A05, 2A01
Manufacturer	DIODES ↗
File Size	123.44 KB
Description	2.0A RECTIFIER
Datasheet	2A01-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: 2A05, 2A01. Please refer to the document for exact specifications by model.

2A05 Product details

Features

Diffused Junction.
High Current Capability and Low Forward Voltage Drop.
Surge Overload Rating to 70A Peak.
Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data.
Case: DO-15.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish.
Bright Tin. Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Mar.
