2A02, 2A01 - AXIAL LEADED SILICON ZENER DIODES

Sunmate

📥 Download Datasheet

2A02 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2A02, 2A01. Please refer to the document for exact specifications by model.

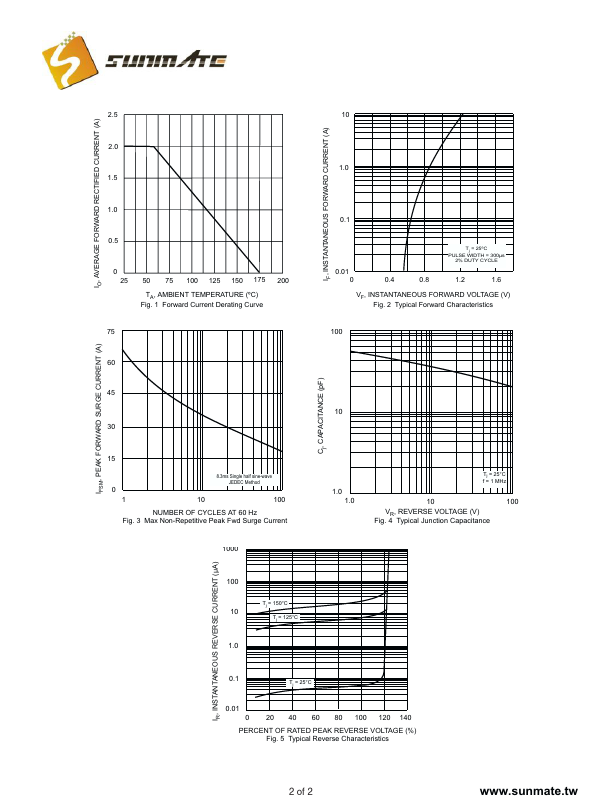

datasheet Preview Page 2

Datasheet Details

Part number	2A02, 2A01
Manufacturer	Sunmate
File Size	133.52 KB
Description	AXIAL LEADED SILICON ZENER DIODES
Datasheet	2A01-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 2A02, 2A01. Please refer to the document for exact specifications by model.

2A02 Product details

Features

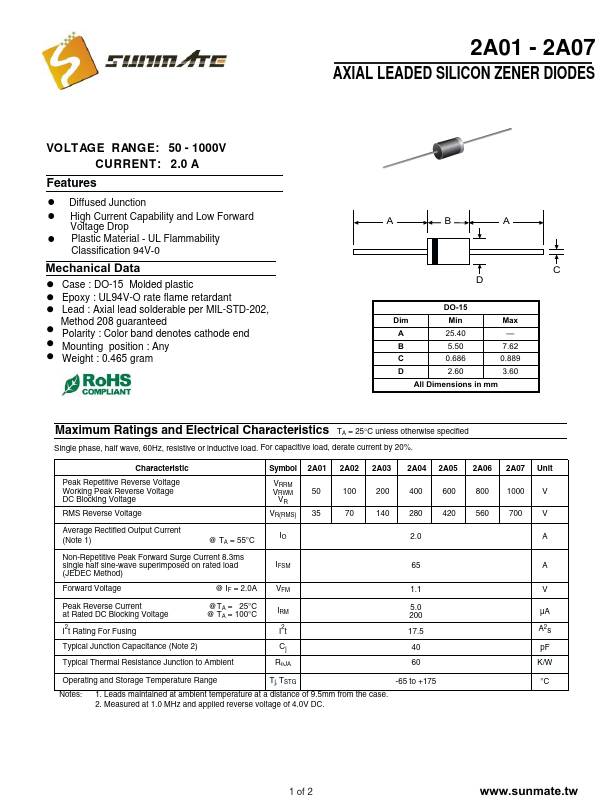

! Diffused Junction ! High Current Capability and Low Forward Voltage Drop ! Plastic Material - UL Flammability Classification 94V-0 Mechanical Data.
Case : DO-15 Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed.
Polarity : Color band denotes cathode end.
Mounting position : Any.
Weight : 0.465 gram A B A C D DO-15 Dim Min Max A 25.40.
B 5.50 7.62 C 0.686 0.889 D 2.6.
