2A04G, 2A01G Glass Passivated Rectifiers

📥 Download Datasheet  Datasheet Preview Page 1

Description

2A01G * 2A07G Taiwan Semiconductor 2A, 50V - 1000V Standard Rectifier .
only.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2A04G, 2A01G. Please refer to the document for exact specifications by model.

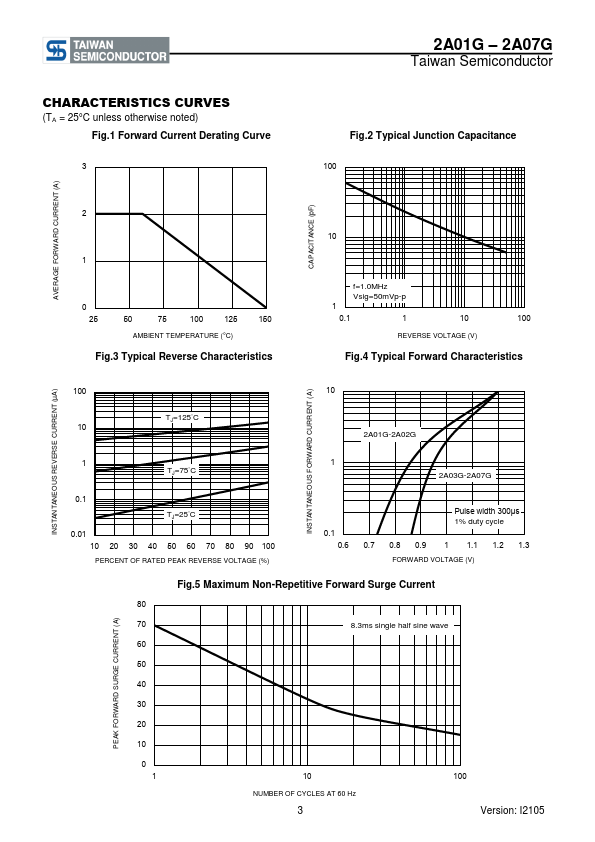

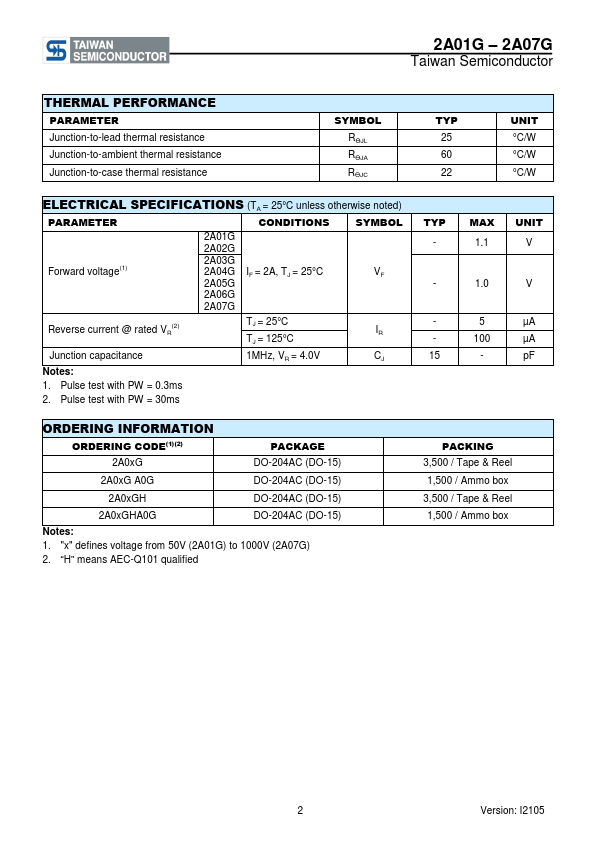

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2A04G, 2A01G
Manufacturer
Taiwan Semiconductor
File Size
352.45 KB
Datasheet
2A01G-TaiwanSemiconductor.pdf
Description
Glass Passivated Rectifiers
Note
This datasheet PDF includes multiple part numbers: 2A04G, 2A01G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* High efficiency, Low VF
* High current capability
* High surge current capability
* Low power loss
* RoHS Compliant

Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 2 A 50 - 1000 V IFSM TJ MAX Package 70 A 150 °C DO-204AC (DO-15) Configuration Single die MECHANICAL DATA
* Case: DO-204AC (DO-15)
* Molding
