2A05G, 2A01G - 2.0A GLASS PASSIVATED RECTIFIER

DIODES

📥 Download Datasheet

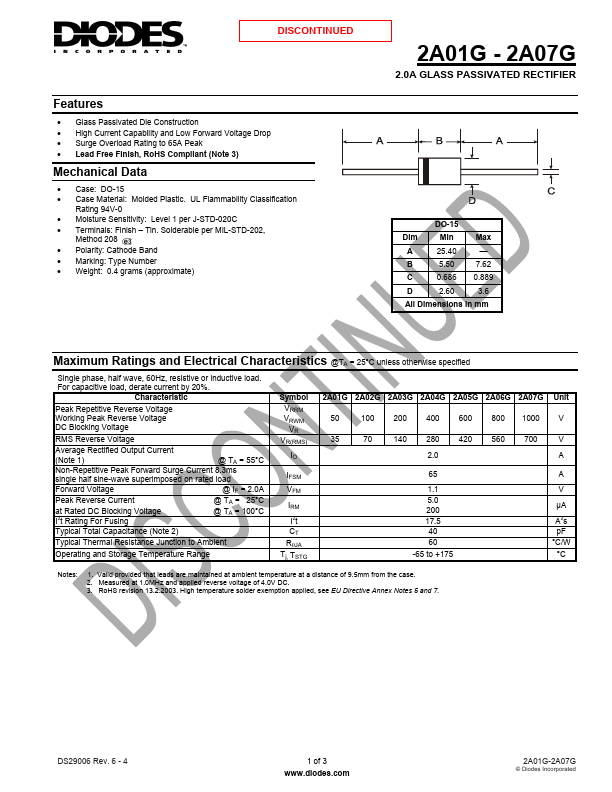

2A05G Datasheet Preview — This datasheet PDF includes multiple part numbers: 2A05G, 2A01G. Please refer to the document for exact specifications by model.

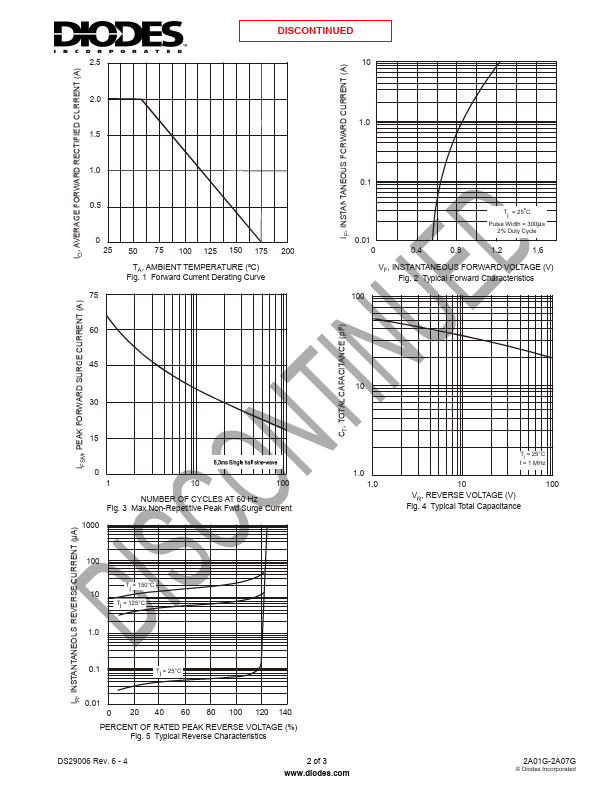

datasheet Preview Page 2

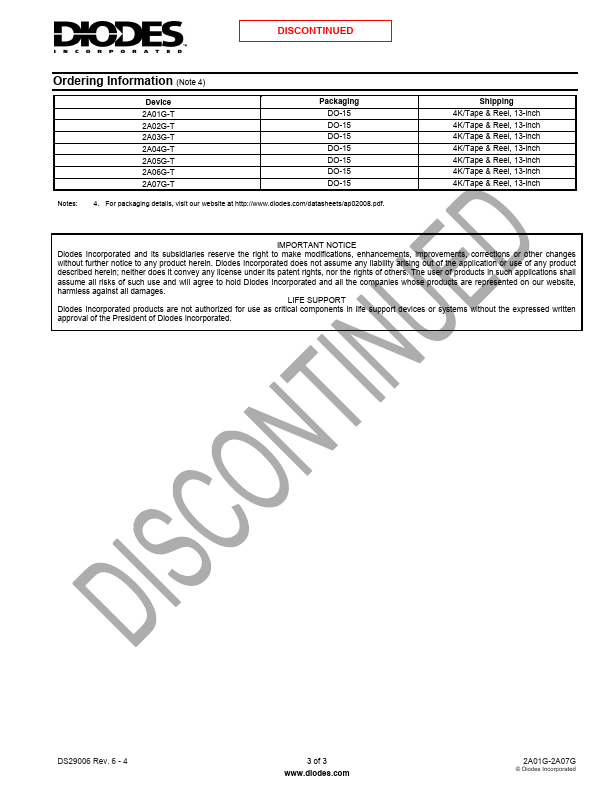

datasheet Preview Page 3

Datasheet Details

Part number	2A05G, 2A01G
Manufacturer	DIODES ↗
File Size	126.95 KB
Description	2.0A GLASS PASSIVATED RECTIFIER
Datasheet	2A01G-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: 2A05G, 2A01G. Please refer to the document for exact specifications by model.

2A05G Product details

Features

Glass Passivated Die Construction.
High Current Capability and Low Forward Voltage Drop.
Surge Overload Rating to 65A Peak.
Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data.
Case: DO-15.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish.
Tin. Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
