3.0SMCJ110AQ Datasheet - DIODES

3000W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

3.0SMCJ110AQ Features

* 3000W Peak Pulse Power Dissipation

* 5V to 170V Standoff Voltages

* Glass Passivated Die Construction

* Excellent Clamping Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Notes 3)

* The

3.0SMCJ110AQ General Description

and Applications This device is suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards: * ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Disch.

3.0SMCJ110AQ Datasheet (363.07 KB)

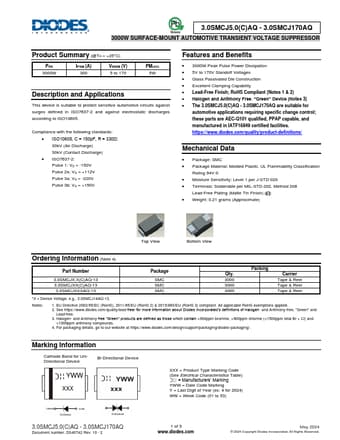

Preview of 3.0SMCJ110AQ PDF

Datasheet Details

Part number:

3.0SMCJ110AQ

Manufacturer:

DIODES ↗

File Size:

363.07 KB

Description:

3000w surface-mount automotive transient voltage suppressor.
3.0SMCJ5.0(C)AQ - 3.0SMCJ170AQ 3000W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@TA = +25°C) PPK 3000W IFSM (A) 300 VR.
