AL17051

ULTRA-LOW STANDBY POWER HV BUCK CONVERTER

DIODES

AL17051 Features

* ultra-low standby operation power of 10mW. It also features high conversion efficiency 60% from rectified mains voltage to 3.3V or 5V for 50mA output and 50% at 10mA light loading during IoT system in idle and sleep mode. With high-degree integration of the embedded 700V High-Voltage MOS switches, t

AL17051 General Description

The DIODES™ AL17051 is a universal AC high voltage input step down converter that provides accurate 3.3V or 5V output and outstanding dynamic performance and load regulation without requiring an optocoupler over line and load regulation. Typical applications are power supplies for offline low power .

AL17051 Datasheet (964.92 KB)

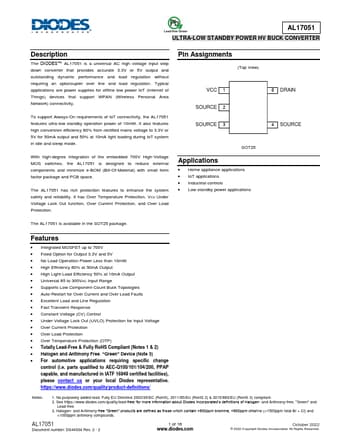

AL17051 Datasheet Preview — Preview of AL17051 PDF

Datasheet Details

Part number:

AL17051

Manufacturer:

DIODES ↗

File Size:

964.92 KB

Description:

Ultra-low standby power hv buck converter.
