AL1783

60V THREE INDEPENDENT PWM CHANNEL LINEAR LED DRIVER

DIODES

AL1783 Features

* Wide Input Voltage Range from 6.5V to 60V

* -40°C to +105°C Ambient Temperature Operation Range

* ±4% LED Current Tolerance @125mA

* PWM Dimming Control for Each Channel

* LED Current Adjustable for Each Channel by External Ref pins

* Automatic Enter

AL1783 General Description

The AL1783 is a three-channel linear LED driver with independent PWM dimming and current-setting controls for each channel. The device is designed to target connected, commercial, industrial, and RGB LED lighting applications. The key merits of the AL1783 are attributed to a compact solution, eBOM c.

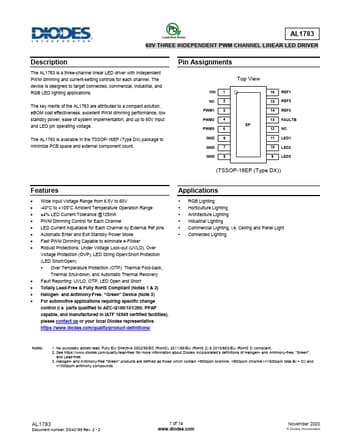

AL1783 Datasheet (610.82 KB)

AL1783 Datasheet Preview — Preview of AL1783 PDF

Datasheet Details

Part number:

AL1783

Manufacturer:

DIODES ↗

File Size:

610.82 KB

Description:

60v three independent pwm channel linear led driver.
