B280AE, B280AE-1 - 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

B280AE Description

B280AE * B2100AE Green 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Product Summary (@ +25°C) Device B280AE B290AE B2100AE VRRM (V) 80 90 1.

B280AE Features

* Guard Ring Die Construction for Transient Protection
* Ideally Suited for Automated Assembly
* Low Power Loss, High Efficiency

B280AE Applications

* Polarity Protection Diode
* Re-Circulating Diode
* Blocking Diode
* DC-DC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: B280AE, B280AE-1. Please refer to the document for exact specifications by model.

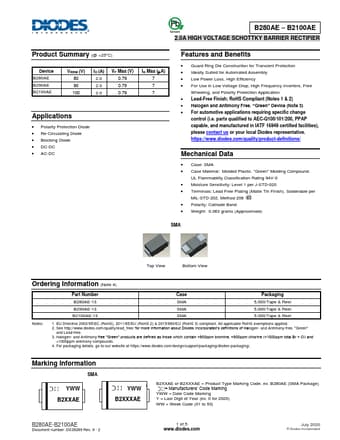

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B280AE, B280AE-1
Manufacturer
DIODES ↗
File Size
426.57 KB
Datasheet
B280AE-1-DIODES.pdf
Description
2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: B280AE, B280AE-1.
Please refer to the document for exact specifications by model.
