B280Q - SCHOTTKY BARRIER RECTIFIER

B280Q Description

Green B270Q -B2100Q 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Product Summary (@ +25°C) B270Q VRRM (V) 70 IO (A) 2.0 VF Max (V) 0.79 B280Q VRR.
and Applications This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.

B280Q Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* Surge Overload Rating to 50A Peak

B280Q Applications

* This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as a:
* Polarity Protection Diode
* Re-Circulating Diode

📥 Download Datasheet

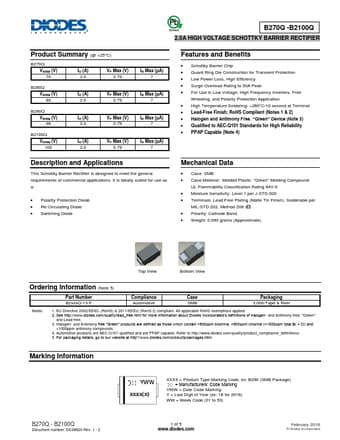

Preview of B280Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B280Q
Manufacturer
DIODES ↗
File Size
380.88 KB
Datasheet
B280Q-Diodes.pdf
Description
SCHOTTKY BARRIER RECTIFIER
