BAS70-05Q - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Datasheet Summary

Description

This device is a 70mA surface mount Schottky barrier diode in a SOT23 package, which offers low forward voltage drop and fastswitching capability, designed with PN junction guard ring for transient and ESD protection.

Features

Low Turn-On Voltage.
Fast Switching.
PN Junction Guard Ring for Transient and ESD Protection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminals: Sold.

Datasheet Details

Part number	BAS70-05Q
Manufacturer	DIODES
File Size	353.42 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	BAS70-05Q Datasheet

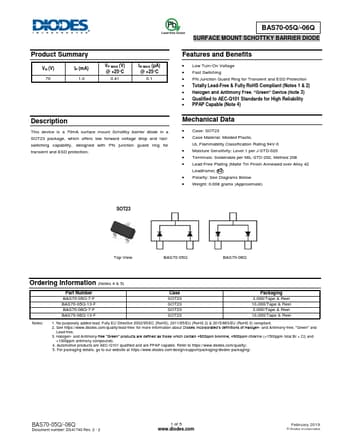

Additional preview pages of the BAS70-05Q datasheet.

📁 Similar Datasheet

BAS70-05 - Silicon Schottky Diode (Infineon)

BAS70-05 - General-purpose Schottky diodes (NXP)

BAS70-05 - SMD Small Signal Schottky Diodes (Diotec)

BAS70-05 - Small Signal Schottky Diodes (Vishay)

BAS70-05 - 225mW SMD Switching Diode (Taiwan Semiconductor)

BAS70-05 - Surface Mount Schottky Barrier Diode (MCC)

BAS70-05 - SURFACE MOUNT SCHOTTKY DIODES (CDIL)

BAS70-05 - Surface Mount Schottky Barrier Diodes (SeCoS)

BAS70-05 - SMALL SIGNAL SCHOTTKY DIODES (STMicroelectronics)

BAS70-05 - Schottky Barrier Diode (GOOD-ARK)

Full PDF Text Transcription

Click to expand full text

Product Summary VR (V) 70 IF (mA) 1.0 VF MAX (V) @ +25°C 0.41 IR MAX (µA) @ +25°C 0.1 Description This device is a 70mA surface mount Schottky barrier diode in a SOT23 package, which offers low forward voltage drop and fastswitching capability, designed with PN junction guard ring for transient and ESD protection. BAS70-05Q/-06Q SURFACE MOUNT SCHOTTKY BARRIER DIODE Features and Benefits  Low Turn-On Voltage  Fast Switching  PN Junction Guard Ring for Transient and ESD Protection  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability  PPAP Capable (Note 4) Mechanical Data  Case: SOT23  Case Material: Molded Plastic.
