BAS70-05-G - Small Signal Schottky Diode

This page provides the datasheet information for the BAS70-05-G, a member of the BAS70-00-G Small Signal Schottky Diode family.

Datasheet Summary

Features

  • These diodes feature very low turn-on voltage and fast switching.
  • These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
  • AEC-Q101 qualified available (part number on request).
  • Base P/N-G3 - green, commercial grade.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet preview – BAS70-05-G

Datasheet Details

Part number BAS70-05-G
Manufacturer Vishay
File Size 85.79 KB
Description Small Signal Schottky Diode
Datasheet download datasheet BAS70-05-G Datasheet
Additional preview pages of the BAS70-05-G datasheet.

📁 Similar Datasheet

  • BAS70-05-G - Small Signal Schottky Diodes (Comchip Technology)
  • BAS70-05-HT3 - Schottky Diodes (Vishay Siliconix)
  • BAS70-05-Q - General-purpose dual Schottky diode (nexperia)
  • BAS70-05-V - Small Signal Schottky Diodes (Vishay Siliconix)
  • BAS70-05 - Silicon Schottky Diode (Infineon)
  • BAS70-05 - General-purpose Schottky diodes (NXP)
  • BAS70-05 - SMD Small Signal Schottky Diodes (Diotec)
  • BAS70-05 - 225mW SMD Switching Diode (Taiwan Semiconductor)
  • BAS70-05 - Surface Mount Schottky Barrier Diode (MCC)
  • BAS70-05 - SURFACE MOUNT SCHOTTKY DIODES (CDIL)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

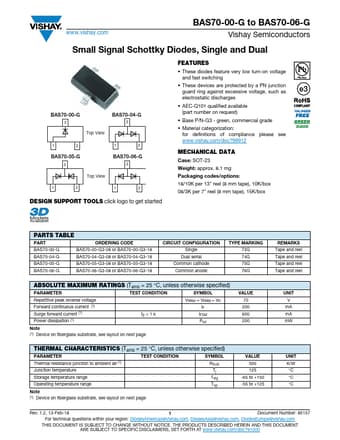

www.vishay.com BAS70-00-G to BAS70-06-G Vishay Semiconductors Small Signal Schottky Diodes, Single and Dual BAS70-00-G 3 BAS70-04-G 3 Top View 1 2 1 2 BAS70-05-G 3 BAS70-06-G 3 Top View 1 2 1 2 DESIGN SUPPORT TOOLS click logo to get started Models Available FEATURES • These diodes feature very low turn-on voltage and fast switching • These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • AEC-Q101 qualified available (part number on request) • Base P/N-G3 - green, commercial grade • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 MECHANICAL DATA Case: SOT-23 Weight: approx. 8.
