DM5W12AQ

3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

DM5W12AQ Features

* 3600W Peak Pulse Power Dissipation

* High Current Capability

* Low Reverse Current

* Low Thermal Resistance

* Low Power Loss and High Efficiency

* Excellent High Temperature Stability

* Meets ISO7637-2 Surge Capability

* Meets ISO16750-2 Surge Specification

* Le

DM5W12AQ General Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against load dump surge according to ISO16750-2. Compliance with the following standards:
* ISO 16750-2, Pulse A and Pulse B
* ISO 7637-2 (Note 5) Pulse 1, Pulse 2a, Pulse 3a, Pulse 3b .

DM5W12AQ Datasheet (582.03 KB)

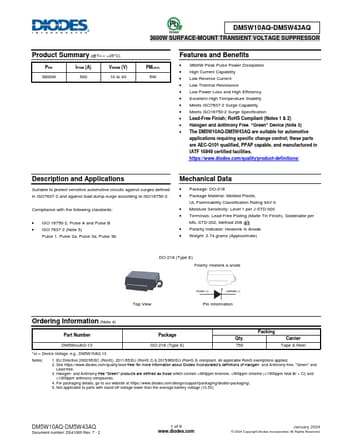

Preview of DM5W12AQ PDF

Datasheet Details

Part number:

DM5W12AQ

Manufacturer:

DIODES ↗

File Size:

582.03 KB

Description:

3600w surface-mount transient voltage suppressor.
Product Summary (@TA = +25°C) PPK 3600W IFSM (A) 500 VRWM (V) 10 to 43 DM5W10AQ-DM5W43AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR PM(AV) .
