DMTH10H010SPS, 100V N-CHANNEL MOSFET

Product Summary BVDSS 100V RDS(ON) Max 8.8mΩ @ VGS = 10V 11.5mΩ @ VGS = 6V ID TC = +25°C 123A 108A Green DMTH10H010SPS 100V 175°C N-CHANNEL ENHA.
Mechanical Data This new generation N-Channel Enhancement Mode MOSFET is. Case: PowerDI®5060-8 designed to minimize RDS(ON), yet maintain supe.

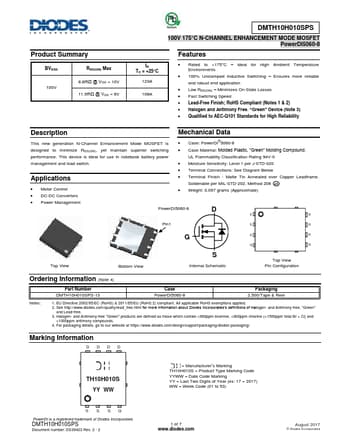

datasheet Preview Page 1 from Datasheet4u.com

DMTH10H010SPS-DIODES.pdf

DMTH10H010SPS Datasheet Preview — Preview of DMTH10H010SPS PDF

Datasheet Details

Part number:

DMTH10H010SPS

Manufacturer:

DIODES ↗

File Size:

522.49 KB

Description:

100V N-CHANNEL MOSFET

Features

* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching

Applications

* Motor Control
* DC-DC Converters
* Terminal Finish - Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e3
* Weight: 0.097 grams (Approximate)
* Power Management PowerDI5060-8 D S D Pin1 S D Top View Bottom View G S Internal Schematic
