DMTH10H010LCT - N-Channel MOSFET

INCHANGE

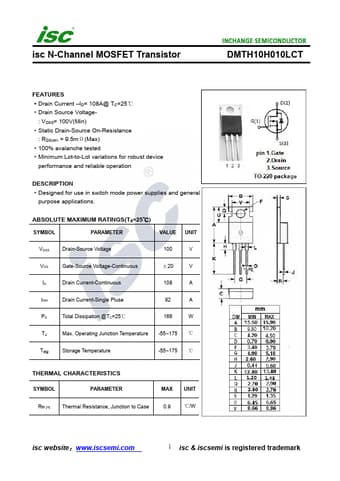

DMTH10H010LCT Datasheet Preview — Preview of DMTH10H010LCT PDF

Datasheet Details

Part number	DMTH10H010LCT
Manufacturer	INCHANGE
File Size	256.68 KB
Description	N-Channel MOSFET
Datasheet	DMTH10H010LCT-INCHANGE.pdf

DMTH10H010LCT Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 100 V ±20 V ID Drain Current-Continuous 108 A IDM Drain Current-Single Pluse 92 A PD Total Dissipation @TC=25℃ 166 W TJ Max.Operating Junction Temperature -55~175 ℃ Tstg Storage Temperature -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c T

Features

Drain Current.
ID= 108A@ TC=25℃.
Drain Source Voltage- : VDSS= 100V(Min).
Static Drain-Source On-Resistance : RDS(on) = 9.5mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
