* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* Low Input Capacitance
* Fast Switching Speed
* Wettable Flank for Improved Optica

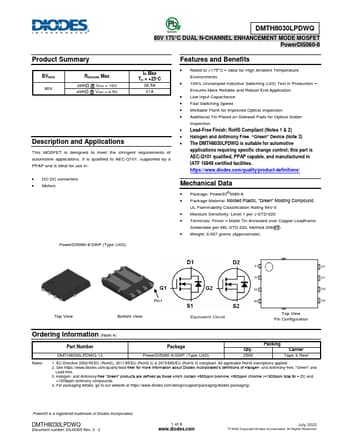

DMTH8030LPDWQ Datasheet (738.52 KB)
DMTH8030LPDWQ
738.52 KB
80v dual n-channel mosfet.
DMTH8030LPDWQ
Green
80V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8
Product Summary
BVDSS 80V
RDS(ON) Max
26mΩ @ VGS = 10V 45mΩ @ VG.
