MMBZ33VALAQ, MMBZ5V6ALAQ - 24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS

MMBZ33VALAQ Description

MMBZ5V6ALAQ - MMBZ33VALAQ 24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS .
These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability.

MMBZ33VALAQ Features

* Dual TVS in Common Anode Configuration
* 24W/40W Peak Power Dissipation Rating @ 1.0ms (Unidirectional)
* 225mW Power Dissipation
* Ideally Suited for Automated Insertion
* Low Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free.

MMBZ33VALAQ Applications

* requiring transient overvoltage protection capability. Unidirectional double ESD protection diode in a common anode configuration, the device is designed for ESD and transient overvoltage protection of up to two signal lines. Applications
* Automotive electronic control units
* Portable elec

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMBZ33VALAQ, MMBZ5V6ALAQ. Please refer to the document for exact specifications by model.

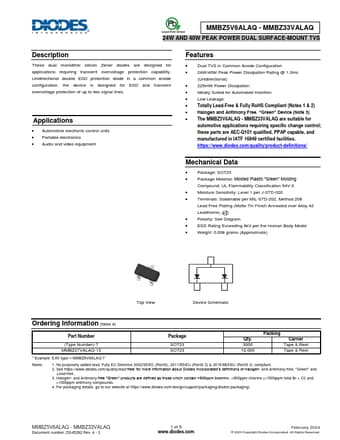

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBZ33VALAQ, MMBZ5V6ALAQ
Manufacturer
DIODES ↗
File Size
454.75 KB
Datasheet
MMBZ5V6ALAQ-DIODES.pdf
Description
24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS
Note
This datasheet PDF includes multiple part numbers: MMBZ33VALAQ, MMBZ5V6ALAQ.
Please refer to the document for exact specifications by model.
