MMBZ27VALAQ, MMBZ5V6ALAQ Datasheet - DIODES

MMBZ27VALAQ 24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS

These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability. Unidirectional double ESD protection diode in a common anode configuration, the device is designed for ESD and transient overvoltage protection of up to two signal lines. A.

MMBZ27VALAQ Features

* Dual TVS in Common Anode Configuration

* 24W/40W Peak Power Dissipation Rating @ 1.0ms (Unidirectional)

* 225mW Power Dissipation

* Ideally Suited for Automated Insertion

* Low Leakage

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free.

MMBZ5V6ALAQ-DIODES.pdf

This datasheet PDF includes multiple part numbers: MMBZ27VALAQ, MMBZ5V6ALAQ. Please refer to the document for exact specifications by model.

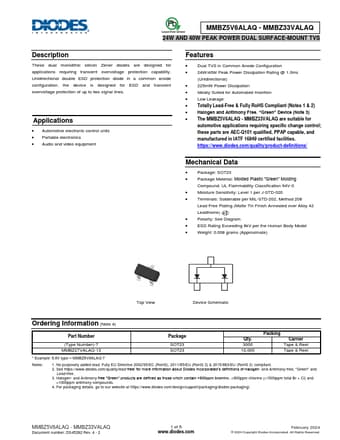

MMBZ27VALAQ Datasheet Preview Page 2 MMBZ27VALAQ Datasheet Preview Page 3

Datasheet Details

Part number:

MMBZ27VALAQ, MMBZ5V6ALAQ

Manufacturer:

DIODES ↗

File Size:

454.75 KB

Description:

24w and 40w peak power dual surface-mount tvs.

Note:

This datasheet PDF includes multiple part numbers: MMBZ27VALAQ, MMBZ5V6ALAQ.
Please refer to the document for exact specifications by model.
