MMBZ27VALT3G

Zener Diode

MMBZ27VALT3G Features

* SOT

* 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration

* Standard Zener Breakdown Voltage Range

* 5.6 V to 47 V

* Peak Power

* 24 or 40 W @ 1.0 ms (Unidirectional), per Figure 6 Waveform

MMBZ27VALT3G Datasheet (162.23 KB)

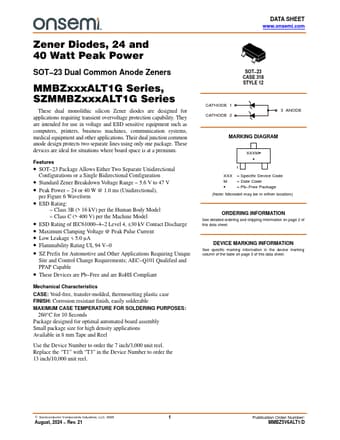

Preview of MMBZ27VALT3G PDF

Datasheet Details

Part number:

MMBZ27VALT3G

Manufacturer:

ON Semiconductor ↗

File Size:

162.23 KB

Description:

Zener diode.
DATA SHEET www.onsemi.com Zener Diodes, 24 and 40 Watt Peak Power SOT

*23 Dual Common Anode Zeners MMBZxxxALT1G Series, SZMMBZxxxALT1G Series.
