PI6CB33202 - Very-Low-Power Two-Output PCIe Clock Buffer

Product Overview

DIODES

Datasheet Details

Part number	PI6CB33202
Manufacturer	DIODES
File Size	1.36 MB
Description	Very-Low-Power Two-Output PCIe Clock Buffer
Datasheet	PI6CB33202 Datasheet

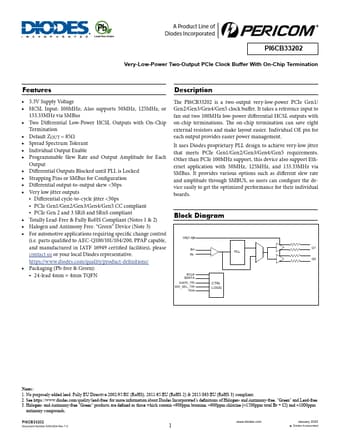

Additional preview pages of the PI6CB33202 datasheet.

Product details

Description

yy 3.3V Supply Voltage yy HCSL Input: 100MHz; Also supports 50MHz, 125MHz, or 133.33MHz via SMBus yy Two Differential Low-Power HCSL Outputs with On-Chip Termination yy Default ZOUT = 85Ω yy Spread Spectrum Tolerant yy Individual Output Enable yy Programmable Slew Rate and Output Amplitude for Each Output yy Differential Outputs Blocked until PLL is Locked yy Strapping Pins or SMBus for Configuration yy Differential output-to-output skew
