PI6C105 Datasheet - Pericom Semiconductor

PI6C105 - Precision Clock Synthesizer

The PI6C105 is a high-speed, low-noise clock generator designed to work with the PI6C18x family of clock buffers to meet all clock needs for Mobile Intel Architecture platforms.

CPU and chipset clock frequencies of 66.6 MHz and 100 MHz are supported.

Split supplies of 3.3V and 2.5V are used.

The 3.3

www.DataSheet4U.com 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI6C105 Precision Clock Synthesizer for Mobile PCs Fe

PI6C105 Features

* Two copies of CPU clock with VDD of 2.5V ±5%

* 100 MHz or 66 MHz operation Six copies PCI clock (synchronous with CPU clock) 3.3V One copy of Ref. clock @ 14.31818 MHz (3.3VTTL) 48 MHz USB Clo

PI6C105_PericomSemiconductor.pdf

Preview of PI6C105 PDF

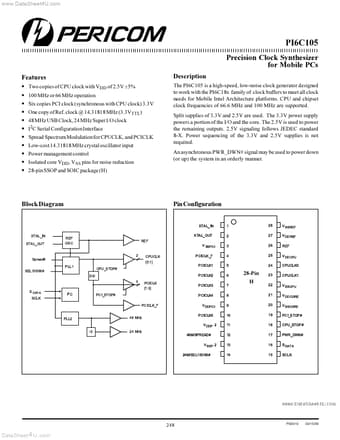

PI6C105 Datasheet Preview Page 2 PI6C105 Datasheet Preview Page 3

Datasheet Details

Part number:

PI6C105

Manufacturer:

Pericom Semiconductor

File Size:

710.88 KB

Description:

Precision clock synthesizer.
