PI6C2409

Zero-Delay Clock Buffer

PI6C2409 Features

* Maximum rated frequency: 133 MHz Low cycle-to-cycle jitter Input to output delay, less than 200ps Internal feedback allows outputs to be synchronized to the clock input

* Operates at 3.3V VDD

* Space-saving Packages: 150-mil SOIC (W) 173-mil TS

PI6C2409 General Description

The PI6C2409 is a PLL based, zero-delay buffer, with the ability to distribute nine outputs of up to 133MHz at 3.3V. All the outputs are distributed from a single clock input CLKIN and output OUT0 performs zero delay by connecting a feedback to PLL. PI6C2409 has two banks of four outputs that can be.

PI6C2409 Datasheet (939.32 KB)

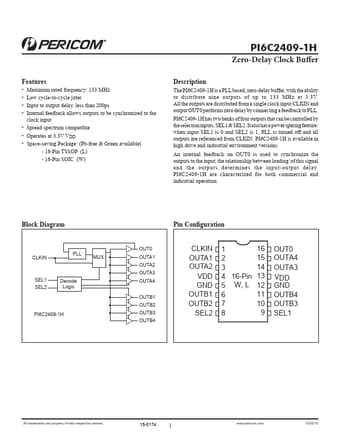

Preview of PI6C2409 PDF

Datasheet Details

Part number:

PI6C2409

Manufacturer:

Pericom Semiconductor Corporation

File Size:

939.32 KB

Description:

Zero-delay clock buffer.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 123456789.
