PI6C2404A-1

Zero-Delay Clock Buffer

PI6C2404A-1 Features

* Maximum rated frequency: 133 MHz

* Low cycle-to-cycle jitter

* Input to output delay, less than 200ps

* External feedback pin allows outputs to be synchronized to the clock input

* 5V tolerant input

* Operates at 3.3V VDD

* Test mode all

PI6C2404A-1 General Description

The PI6C2404A-1 is a PLL-based, zero-delay buffer, with the ability to distribute four outputs of up to 133 MHz at 3.3V. Two banks of two outputs exist, OUTA[1 *2] and OUTB[1 *2]. An external feedback pin is used to synchronize the outputs to .

PI6C2404A-1 Datasheet (330.54 KB)

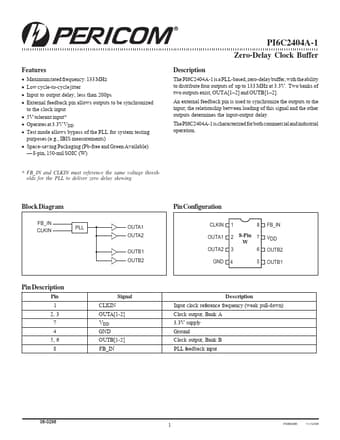

Preview of PI6C2404A-1 PDF

Datasheet Details

Part number:

PI6C2404A-1

Manufacturer:

Pericom Semiconductor

File Size:

330.54 KB

Description:

Zero-delay clock buffer.
