PI6C2408

3.3V 4+4 Ouptut Zero-delay Clock Driver

PI6C2408 Features

* ÎÎMaximum rated frequency: 140 MHz ÎÎLow cycle-to-cycle jitter ÎÎInput to output delay, less than 150ps ÎÎExternal feedback pin allows outputs to be synchronized to the clock input ÎÎ5V tolerant CLKIN input ÎÎOperates at 3.3V VDD ÎÎTest mode allows bypass of the PLL for system testing purposes (e.g.

PI6C2408 General Description

The PI6C2408 is a PLL-based, zero-delay buffer, with the ability to distribute eight outputs of up to 140MHz at 3.3V. Two banks of four outputs exist, and, depending on product option ordered, can supply either reference frequency, prescaled half frequency, or multiplied 2x or 4x input clock frequen.

PI6C2408 Datasheet (873.18 KB)

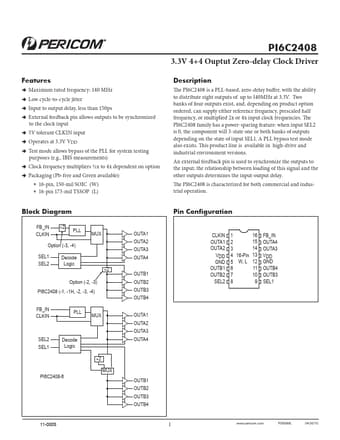

Preview of PI6C2408 PDF

Datasheet Details

Part number:

PI6C2408

Manufacturer:

Pericom Semiconductor Corporation

File Size:

873.18 KB

Description:

3.3v 4+4 ouptut zero-delay clock driver.
