PR3004G, PR3001G - 3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

PR3004G Description

NOT RECOMMENDED FOR NEW DESIGN PR3001G - PR3007G 3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER .

PR3004G Features

* Glass Passivated Die Construction
* Fast Switching for High Efficiency
* Surge Overload Rating to 125A Peak
* Low Reverse Leakage Current
* Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data
* Case: DO-201AD
* Case Material: Molded Pl

PR3004G Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PR3004G, PR3001G. Please refer to the document for exact specifications by model.

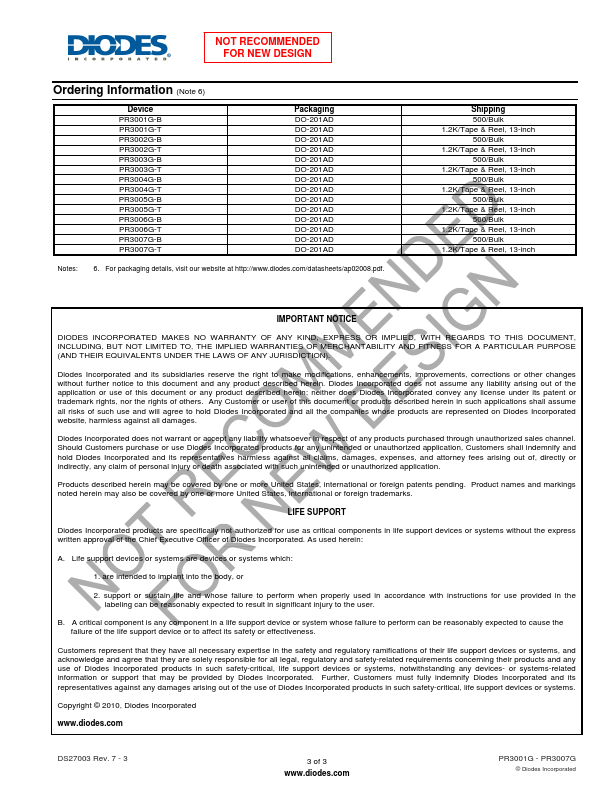

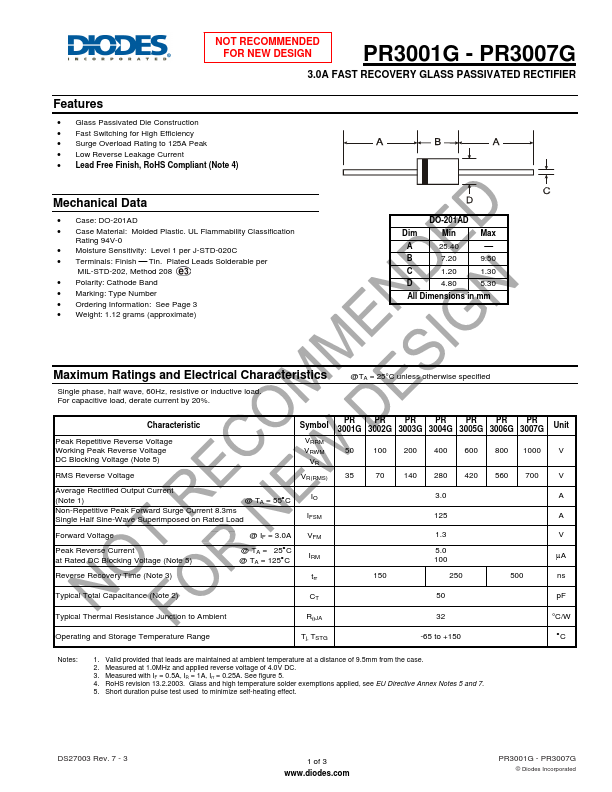

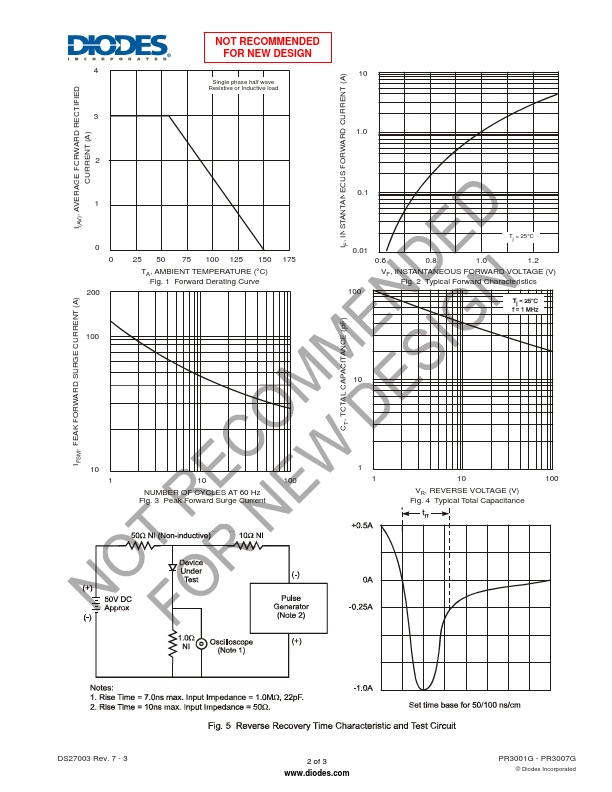

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PR3004G, PR3001G
Manufacturer
DIODES ↗
File Size
97.24 KB
Datasheet
PR3001G-DIODES.pdf
Description
3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER
Note
This datasheet PDF includes multiple part numbers: PR3004G, PR3001G.
Please refer to the document for exact specifications by model.
