NOT RECOMMENDED FOR NEW DESIGN
PR3001G - PR3007G

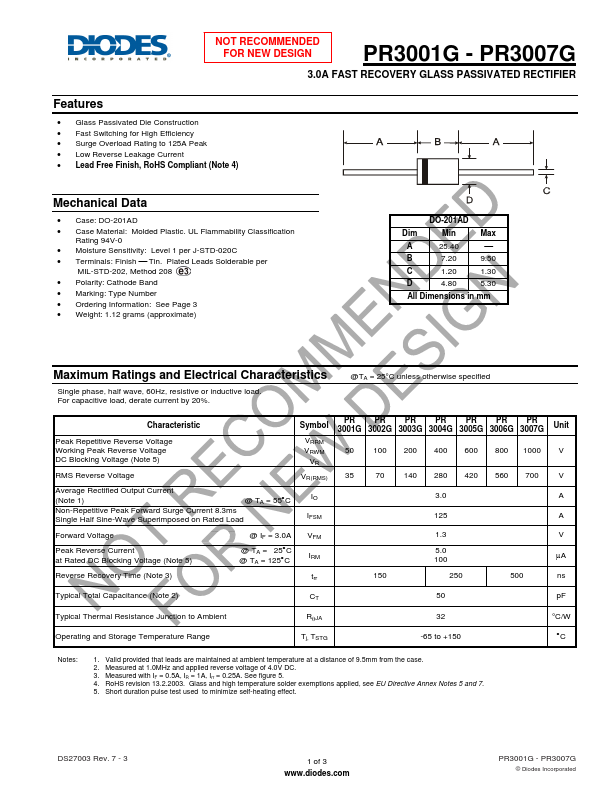

3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER
Features
• Glass Passivated Die Construction • Fast Switching for High Efficiency • Surge Overload Rating to 125A Peak • Low Reverse Leakage Current • Lead Free Finish, RoHS Compliant (Note 4)
Mechanical Data
• Case: DO-201AD • Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020C • Terminals: Finish ⎯ Tin. Plated Leads Solderable per
MIL-STD-202, Method 208 • Polarity: Cathode Band • Marking: Type Number • Ordering Information: See Page 3 • Weight: 1.12 grams (approximate)
DO-201AD
Dim
Min
Max
A
25.40
⎯
B
7.20
9.50
C
1.20
1.30
D
4.80
5.
PR3006G Datasheet
