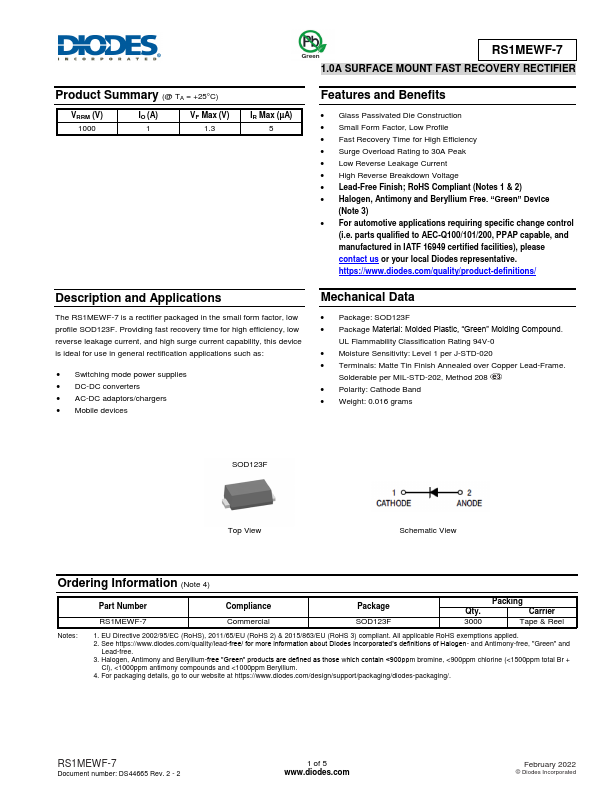

RS1MEWF-7 - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

Product Overview

DIODES

Datasheet Details

Part number	RS1MEWF-7
Manufacturer	DIODES
File Size	803.29 KB
Description	1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS1MEWF-7 Datasheet

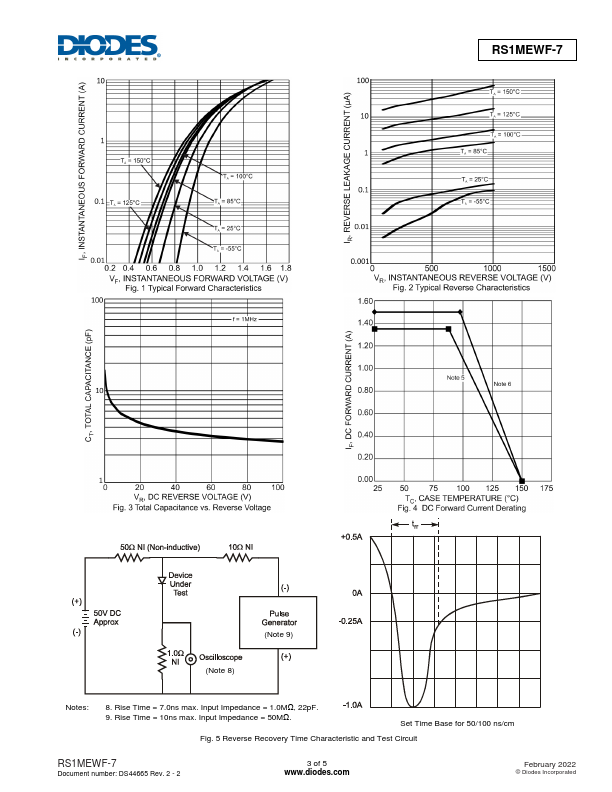

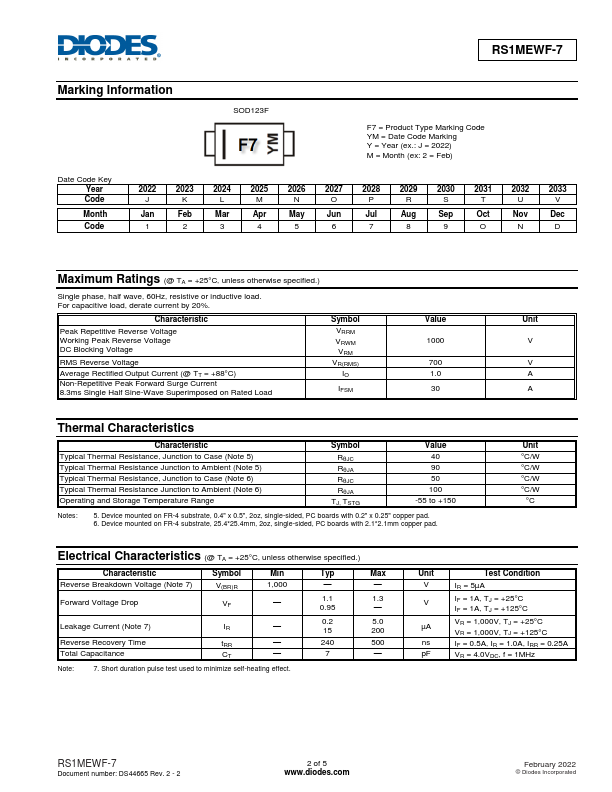

Additional preview pages of the RS1MEWF-7 datasheet.

Product details

Description

and Applications The RS1MEWF-7 is a rectifier packaged in the small form factor, low profile SOD123F.Providing fast recovery time for high efficiency, low reverse leakage current, and high surge current capability, this device is ideal for use in general rectification applications such as: Switching mode power supplies DC-DC converters AC-DC adaptors/chargers Mobile devices Mechanical Data Package: SOD123F Package Material: Molded Plastic, “Green” Molding Co

Features

Glass Passivated Die Construction.
Small Form Factor, Low Profile.
Fast Recovery Time for High Efficiency.
Surge Overload Rating to 30A Peak.
Low Reverse Leakage Current.
High Reverse Breakdown Voltage.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen, Antimony and Beryllium Free. “Green” Device (Note 3).
For automotive.
