RS1MEWFQ Datasheet - DIODES

RS1MEWFQ 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

and Applications The RS1MEWFQ is a rectifier packaged in the small form factor, low profile SOD123F. Providing fast recovery time for high efficiency, low reverse leakage current, and high surge current capability, this device is ideal for use in general rectification applications such as: * Swi.

RS1MEWFQ Features

* Glass Passivated Die Construction

* Small Form Factor, Low Profile

* Fast Recovery Time for High Efficiency

* Surge Overload Rating to 30A Peak

* Low Reverse Leakage Current

* High Reverse Breakdown Voltage

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen

RS1MEWFQ Datasheet (782.77 KB)

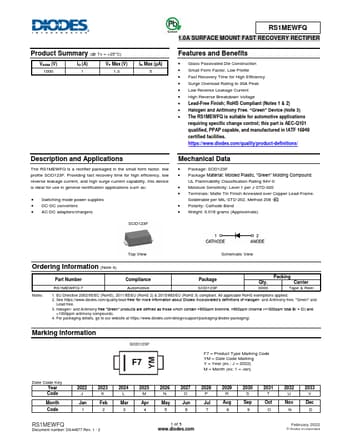

Preview of RS1MEWFQ PDF
RS1MEWFQ Datasheet Preview Page 2 RS1MEWFQ Datasheet Preview Page 3

Datasheet Details

Part number:

RS1MEWFQ

Manufacturer:

DIODES ↗

File Size:

782.77 KB

Description:

1.0a surface mount fast recovery rectifier.
