RS3D, RS3A - 3.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

DIODES

📥 Download Datasheet

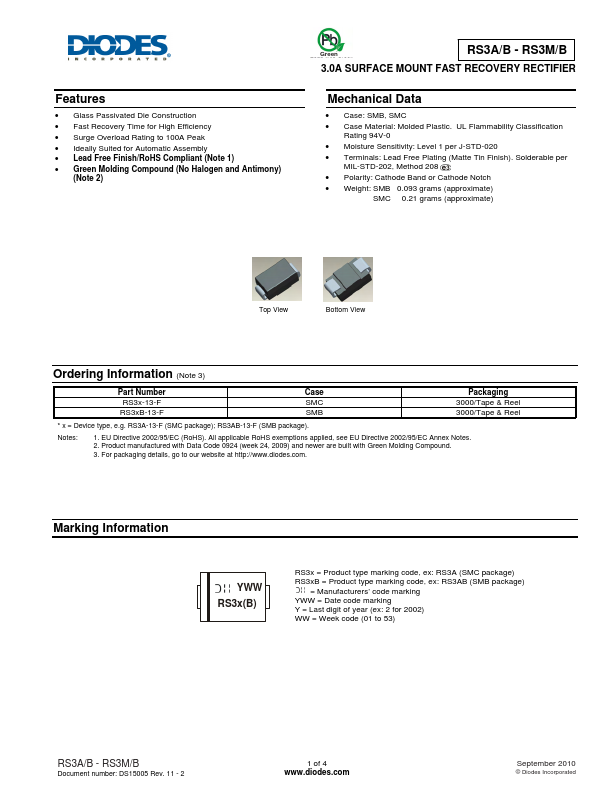

RS3D Datasheet Preview — This datasheet PDF includes multiple part numbers: RS3D, RS3A. Please refer to the document for exact specifications by model.

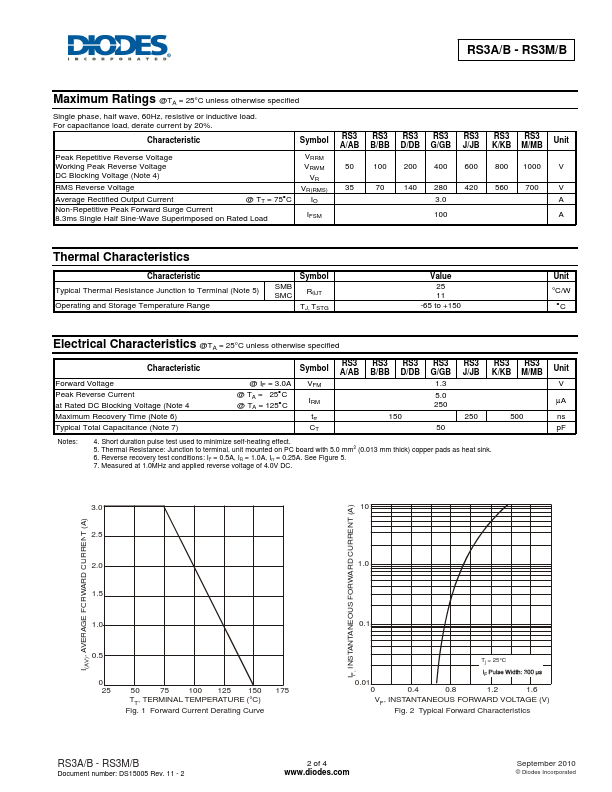

datasheet Preview Page 2

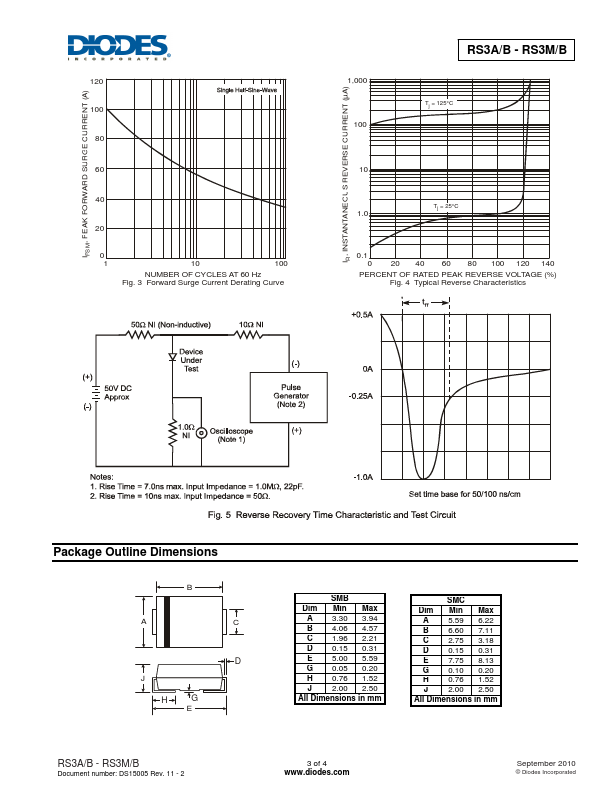

datasheet Preview Page 3

Datasheet Details

Part number	RS3D, RS3A
Manufacturer	DIODES ↗
File Size	108.92 KB
Description	3.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS3A-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: RS3D, RS3A. Please refer to the document for exact specifications by model.

RS3D Product details

Features

Glass Passivated Die Construction.
Fast Recovery Time for High Efficiency.
Surge Overload Rating to 100A Peak.
Ideally Suited for Automatic Assembly.
Lead Free Finish/RoHS Compliant (Note 1).
Green Molding Compound (No Halogen and Antimony) (Note 2) Green RS3A/B - RS3M/B 3.0A.
