S2MHQ 2.0A SURFACE-MOUNT STANDARD RECTIFIER

S2MHQ Description

S2MHQ Green 2.0A SURFACE-MOUNT STANDARD RECTIFIER .

S2MHQ Features

* Glass Passivated Die Construction
* Low-Forward Voltage Drop and High-Current Capability
* Surge Overload Rating to 50A Peak
* Ideally Suited for Automated Assembly
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green”

S2MHQ Applications

* requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www. diodes. com/quality/product-definitions/ Mechanical Data
* Package: SMB
* Package Material: Molded Plastic. UL Flammability Classificatio

📥 Download Datasheet

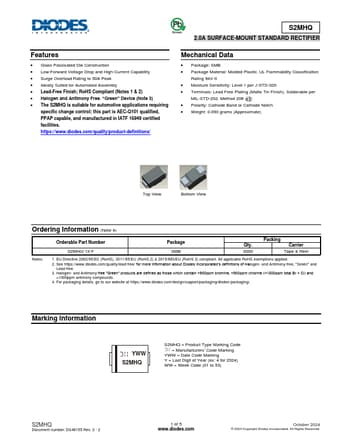

Preview of S2MHQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2MHQ
Manufacturer
DIODES ↗
File Size
284.96 KB
Datasheet
S2MHQ-DIODES.pdf
Description
2.0A SURFACE-MOUNT STANDARD RECTIFIER
