SD101A - SCHOTTKY BARRIER DIODE

Product Overview

DIODES

📥 Download Datasheet

SD101A SCHOTTKY BARRIER DIODE by DIODES - Datasheet Preview — Datasheet preview – SD101A

Datasheet Details

Part number	SD101A
Manufacturer	DIODES
File Size	111.29 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	SD101A Datasheet

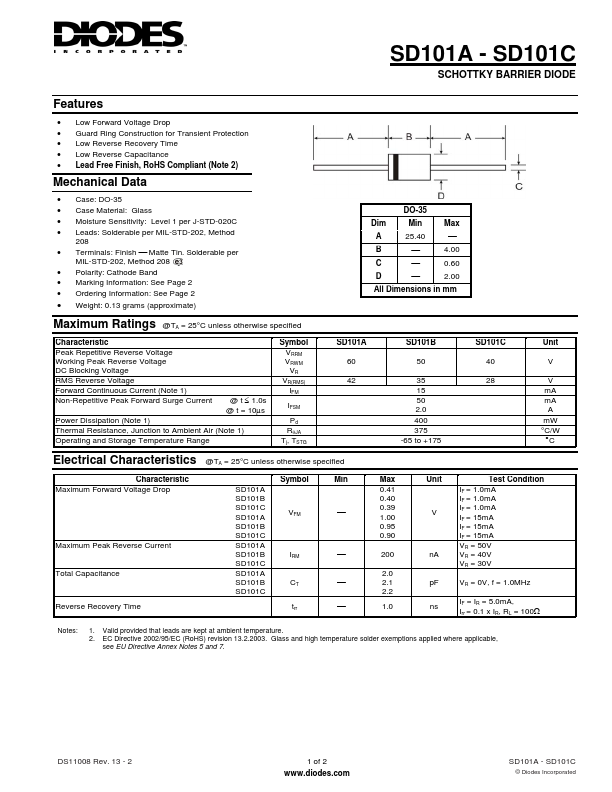

Additional preview pages of the SD101A datasheet.

Product details

Features

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Low Reverse Recovery Time.
Low Reverse Capacitance.
Lead Free Finish, RoHS Compliant (Note 2) Mechanical Data.
Case: DO-35.
Case Material: Glass.
Moisture Sensitivity: Level 1 per J-STD-020C.
Leads: Solderable per MIL-STD-202, Method 208.
Terminals: Finish ⎯ Matte Tin. Solderable per MIL-STD-202, Method 208.
Polarity: Cat.
