SDT40120CT - 40A TRENCH SCHOTTKY RECTIFIER

SDT40120CT Description

Product Summary (Per Leg) VRRM (V) 120 IO (A) 20 VF Max (V) @ +25°C 0.95 SDT40120CT/SDT40120CTFP Green 40A TRENCH SCHOTTKY RECTIFIER IR Max (µ A).
and Applications The DIODES™ SDT40120CT and DIODES™ SDT40120CTFP provide very low VF and extremely excellent reverse leakage stability at high tempera.

SDT40120CT Features

* Low Forward Voltage Drop
* Low Power Loss
* Excellent High Temperature Stability
* Soft, Fast Switching Capability
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

📥 Download Datasheet

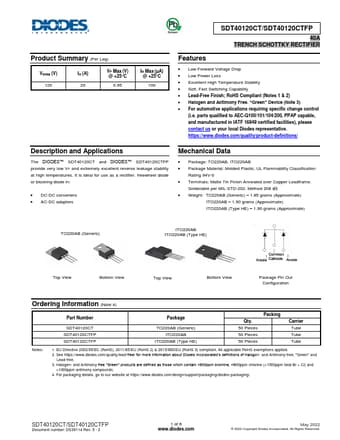

Preview of SDT40120CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDT40120CT
Manufacturer
DIODES ↗
File Size
745.35 KB
Datasheet
SDT40120CT-DIODES.pdf
Description
40A TRENCH SCHOTTKY RECTIFIER
