SDT40A120CT Datasheet - DIODES

40A TRENCH SCHOTTKY RECTIFIER

SDT40A120CT Features

* Low Forward Voltage Drop

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. ā€œGreenā€ Device (Note 3)

* For automotive applications requiring specific change control (i.e. part

SDT40A120CT General Description

and Applications The DIODESā„¢ SDT40A120CT and DIODESā„¢ SDT40A120CTFP provide very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in: * DC-DC converters * AC-DC adaptors Mechanical Data * .

SDT40A120CT Datasheet (745.32 KB)

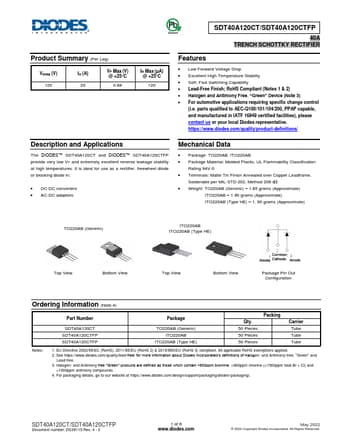

Preview of SDT40A120CT PDF

Datasheet Details

Part number:

SDT40A120CT

Manufacturer:

DIODES ā†—

File Size:

745.32 KB

Description:

40a trench schottky rectifier.
Product Summary (Per Leg) VRRM (V) 120 IO (A) 20 VF Max (V) @ +25Ā°C 0.88 SDT40A120CT/SDT40A120CTFP Green 40A TRENCH SCHOTTKY RECTIFIER IR Max (Āµ .
