SF2DDF

2.0A SURFACE MOUNT SUPER-FAST RECTIFIER

SF2DDF Features

* Low Profile, Small Form Factor Package

* Low Leakage Current

* Glass Passivated for High Reliability

* Superfast Recovery Times for High Efficiency

* Low Forward Voltage, Low Power Loss

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green

SF2DDF General Description

and Applications The SF2xDF is a rectifier packaged in the D-FLAT package and is suited as a boost diode in power factor correction circuitry. For use in secondary rectification and freewheeling for superfast switching speed AC-DC and DC-DC converters in high-temperature conditions for consumer appl.

SF2DDF Datasheet (632.92 KB)

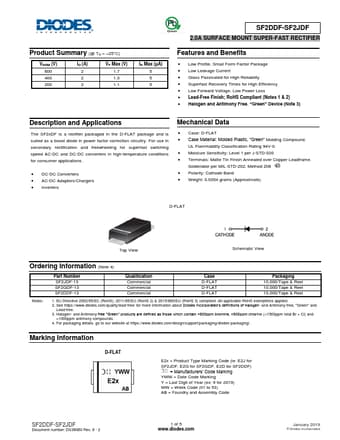

Preview of SF2DDF PDF

Datasheet Details

Part number:

SF2DDF

Manufacturer:

DIODES ↗

File Size:

632.92 KB

Description:

2.0a surface mount super-fast rectifier.
Product Summary (@ TA = +25°C) VRRM (V) 600 400 200 IO (A) 2 2 2 VF Max (V) 1.7 1.3 1.1 Green SF2DDF-SF2JDF 2.0A SURFACE MOUNT SUPER-FAST RECTIF.
