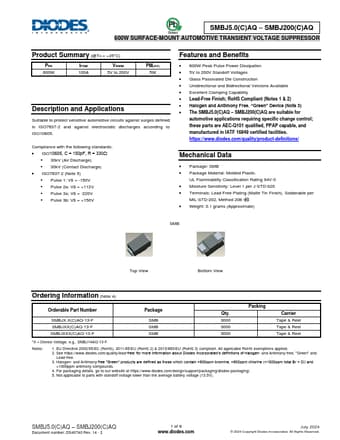

SMBJ7.0AQ Datasheet - DIODES

SMBJ7.0AQ 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards: * ISO10605, C = 150pF, R = 330Ω: ▪ 30kV (Air Discharge) ▪ 30kV (Contact Discharge) <.

SMBJ7.0AQ Features

* 600W Peak Pulse Power Dissipation

* 5V to 200V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halo

SMBJ7.0AQ Datasheet (289.05 KB)
