SMBJ7.5AQ, SMBJ5.0AQ Datasheet - DIODES

SMBJ7.5AQ 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards: * ISO10605, C = 150pF, R = 330Ω: ▪ 30kV (Air Discharge) ▪ 30kV (Contact Discharge) <.

SMBJ7.5AQ Features

* 600W Peak Pulse Power Dissipation

* 5V to 200V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halo

SMBJ5.0AQ-DIODES.pdf

This datasheet PDF includes multiple part numbers: SMBJ7.5AQ, SMBJ5.0AQ. Please refer to the document for exact specifications by model.

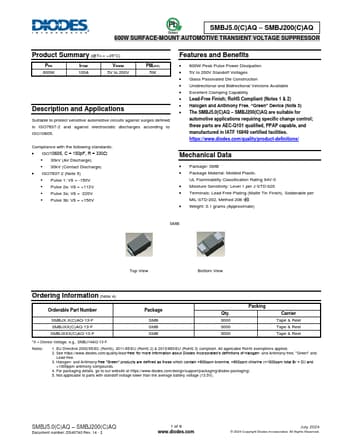

SMBJ7.5AQ Datasheet Preview Page 2 SMBJ7.5AQ Datasheet Preview Page 3

Datasheet Details

Part number:

SMBJ7.5AQ, SMBJ5.0AQ

Manufacturer:

DIODES ↗

File Size:

289.05 KB

Description:

600w surface-mount automotive transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: SMBJ7.5AQ, SMBJ5.0AQ.
Please refer to the document for exact specifications by model.
