SMF4L12AQ, SMF4L3.3AQ - 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

DIODES

SMF4L12AQ Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF4L12AQ, SMF4L3.3AQ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SMF4L12AQ, SMF4L3.3AQ
Manufacturer	DIODES ↗
File Size	451.79 KB
Description	400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

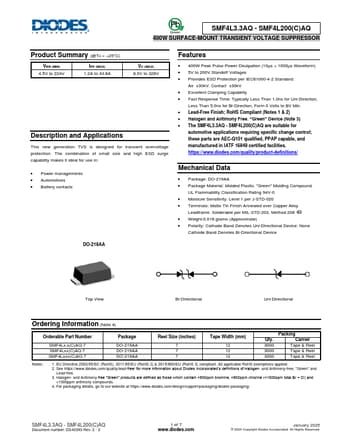

Datasheet	SMF4L3.3AQ-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: SMF4L12AQ, SMF4L3.3AQ. Please refer to the document for exact specifications by model.

SMF4L12AQ Product details

Description

and Applications This new generation TVS is designed for transient overvoltage protection.The combination of small size and high ESD surge capability makes it ideal for use in: Power managements Automotives Battery contacts

Features

400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform).
5V to 200V Standoff Voltages.
Provides ESD Protection per IEC61000-4-2 Standard: Air ±30kV, Contact ±30kV.
Excellent Clamping Capability.
Fast Response Time: Typically Less Than 1.0ns for Uni-Direction, Less Than 5.0ns for Bi-Direction, Form 0 Volts to BV Min.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The S.
